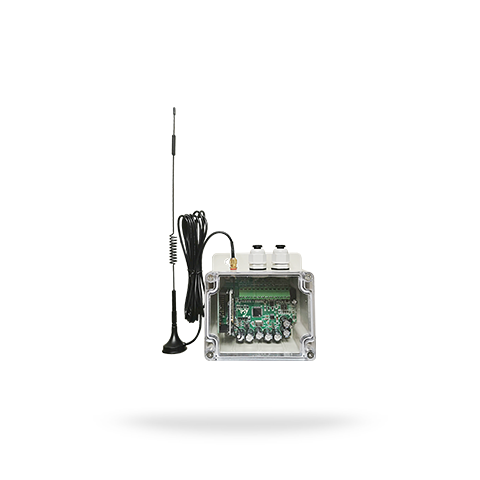

DM-BR data monitor

Ø   DM-BR-4G data monitor has following features:

Ø   Integrated with 2G/4G communication module to implement solar pumping system remote monitoring & control.

Ø   2G module compatible with 4 communication frequencies: GSM850/900, DCS1800/1900, applicable for global countries.

Ø   4G module compatible with 5-mode 13-band communication: TDD-LTE Band 38/39/40/41，FDD-LTE Band 1/3/8，WCDMA Band 1/8，TD-SCDMA Band 34/39，GSM Band 3/8，applicable for global countries.

Ø   Compatible with inverter 12V/24V DC input.

Ø   Support to collect temperate, collection range: -40℃ ～ 100℃, accuracy: +2℃.

Ø   Support to monitor water pressure with water pressure sensor, input signal: 0~10V.

Ø   Support to monitor water level with water level sensor, input signal: 4~20mA.

Ø   Support to monitor the water flow with water meter.
